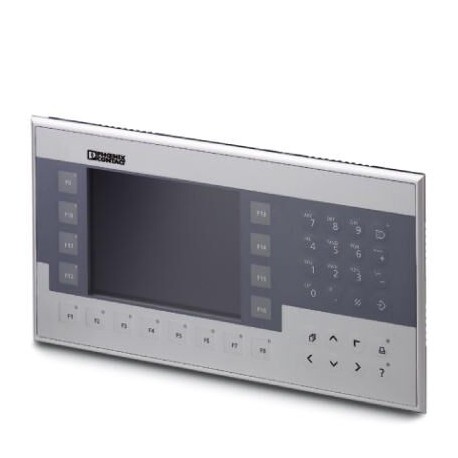

BT21AS/742060 S00003 2400649 PHOENIX CONTACT Key panel with 14.5 cm/5.7″ TFT active-display (Without touch t..
BT21AS/742060 S00003 2400649 PHOENIX CONTACT Key panel with 14.5 cm/5.7″ TFT active-display (Without touch t..
Key panel with 14.5 cm/5.7″ TFT active-display (Without touch technology), 320 x 240 Pixel(s) (QVGA), 65536 colors, Arm9™, 200 MHz, 2x USB host 2.0, 1 x Ethernet (10/100 Mbps), RJ45, Windows CE 5.0 and user software: TSvisRT. (bus system: CAN)
Liên hệ:
Key panel with 14.5 cm/5.7″ TFT active-display (Without touch technology), 320 x 240 Pixel(s) (QVGA), 65536 colors, Arm9™, 200 MHz, 2x USB host 2.0, 1 x Ethernet (10/100 Mbps), RJ45, Windows CE 5.0 and user software: TSvisRT. (bus system: CAN)
Key Commercial Data
| Orderkey | 2400649 |
|---|---|
| Packing unit | 1 |
| GTIN | 4055626098104 |
| Custom tariff number | 84714100 |
Note
| Utilization restriction | EMC: class A product, see manufacturer’s declaration in the download area |
|---|
Dimensions
| Outer dimensions: width, height, depth | 300 mm x 160 mm x 5 mm (Dimensions of the front plate) |
|---|---|
| Installation dimensions: width, height, depth | 292 mm x 152 mm x 55 mm (Mounting cutout, depth with bus if bus system present in the device) |
Display
| Display | 14.5 cm/5.7″ TFT active |
|---|---|
| Screen resolution | 320 x 240 Pixel(s) (QVGA) |
| Touch technology | Without touch technology |
| Brightness | 400 cd/m², typical (adjustable) |
| Backlighting | LED |
| Display backlight MTBF | 40000 h |
| Colors | 65536 colors |
| Reading angle left | 75 ° |
| Reading angle right | 75 ° |
| Reading angle top | 60 ° |
| Reading angle bottom | 75 ° |
Computer data
| Processor | Arm9™, 200 MHz |
|---|---|
| Operating system | Windows®CE 5.0 |
| User software | TSvisRT |
| RAM | 64 MB SDRAM |
| 512 KB SRAM | |
| Mass storage | NOR-Flash, 32 MB |
| Network | 1 x Ethernet (10/100 Mbps), RJ45 |
| Interfaces | 2x USB host 2.0 |
| Bus system | CAN |
| Optional interfaces | none |
| Realtime clock | Yes |
| Service life of battery | 5 years (typical) |
General
| Material front plate | Aluminum (natural anodized) |
|---|---|
| Housing material | Steel sheet, zinc-plated |
| Mounting type | Front installation |
| Weight | 680 g |
