Key Commercial Data
| Orderkey | 3281124 |
|---|---|
| Packing unit | 50 pc |
| Minimum order quantity | 50 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 391 (C-1-2017) |
| GTIN | 4055626119113 |
| Weight per Piece (excluding packing) | 11.800 g |
| Custom tariff number | 85369010 |
| Country of origin | IN (India) |
General
| Number of levels | 1 |
|---|---|
| Number of connections | 2 |
| Potentials | 1 |
| Nominal cross section | 4 mm² |
| Color | black |
| Insulating material | PC |
| Flammability rating according to UL 94 | V0 |
| Rated surge voltage | 6 kV |
| Degree of pollution | 3 |
| Overvoltage category | III |
| Insulating material group | IIIa |
| Maximum power dissipation for nominal condition | 1.02 W |
| Ambient temperature (operation) | -40 °C … 110 °C |
| Maximum load current | 32 A |
| Nominal current IN | 32 A |
| Nominal voltage UN | 690 V |
| Open side panel | Yes |
| Shock protection test specification | DIN EN 50274 (VDE 0660-514):2002-11 |
| Back of the hand protection | guaranteed |
| Finger protection | guaranteed |
| Result of surge voltage test | Test passed |
| Surge voltage test setpoint | 7.3 kV |
| Result of power-frequency withstand voltage test | Test passed |
| Power frequency withstand voltage setpoint | 1.89 kV |
| Result of the test for mechanical stability of terminal points (5 x conductor connection) | Test passed |
| Result of bending test | Test passed |
| Bending test rotation speed | 10 rpm |
| Bending test turns | 135 |
| Bending test conductor cross section/weight | 0.5 mm² / 0.3 kg |
| 4 mm² / 0.9 kg | |
| Tensile test result | Test passed |
| Conductor cross section tensile test | 0.5 mm² |
| Tractive force setpoint | 20 N |
| Conductor cross section tensile test | 4 mm² |
| Tractive force setpoint | 60 N |
| Conductor cross section tensile test | 3.5 mm² |
| Tractive force setpoint | 60 N |
| Result of tight fit on support | Test passed |
| Tight fit on carrier | NS 35 |
| Setpoint | 1 N |
| Result of voltage-drop test | Test passed |
| Requirements, voltage drop | ≤ 3.2 mV |
| Result of temperature-rise test | Test passed |
| Short circuit stability result | Test passed |
| Conductor cross section short circuit testing | 4 mm² |
| Short-time current | 0.48 kA |
| Conductor cross section short circuit testing | 3.5 mm² |
| Short-time current | 0.42 kA |
| Result of thermal test | Test passed |
| Proof of thermal characteristics (needle flame) effective duration | 30 s |
| Oscillation, broadband noise test result | Test passed |
| Test specification, oscillation, broadband noise | DIN EN 50155 (VDE 0115-200):2008-03 |
| Test spectrum | Service life test category 2, bogie-mounted |
| Test frequency | f1= 5 Hz to f2= 250 Hz |
| ASD level | 6.12 (m/s2)2/Hz |
| Acceleration | 3.12 g |
| Test duration per axis | 5 h |
| Test directions | X-, Y- and Z-axis |
| Shock test result | Test passed |
| Test specification, shock test | DIN EN 50155 (VDE 0115-200):2008-03 |
| Shock form | Half-sine |
| Acceleration | 30g |
| Shock duration | 18 ms |
| Test directions | X-, Y- and Z-axis (pos. and neg.) |
| Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) | 130 °C |
Connection data

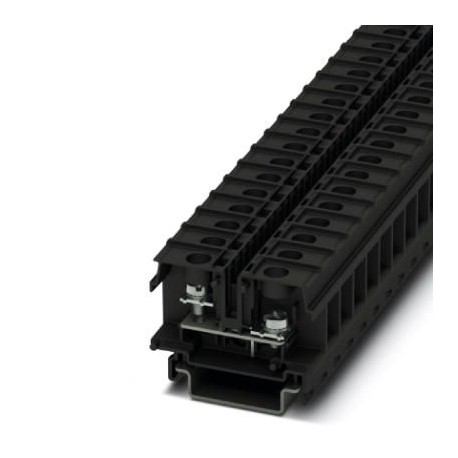

| Connection method | Ring cable lug |
|---|---|
| Connection in acc. with standard | IEC 60947-7-1 |
| Conductor cross section solid min. | 0.2 mm² |
| Conductor cross section solid max. | 4 mm² |
| Conductor cross section flexible min. | 0.14 mm² |
| Conductor cross section flexible max. | 4 mm² |
| Min. AWG conductor cross section, flexible | 26 |
| Max. AWG conductor cross section, flexible | 10 |
| Conductor cross section flexible, with ferrule with plastic sleeve min. | 0.2 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve max. | 4 mm² |
| Cable lug connection according to standard | DIN 46234 |
| Min. cross section for cable lug connection | 0.14 mm² |
| Max. cross section for cable lug connection | 4 mm² |
| AWG min | 26 |
| AWG max | 10 |
| Hole diameter, min. | 4.3 mm |
| Cable lug width, max. | 8.8 mm |
| Bolt diameter | 4 mm |
| Screw thread | M4 |
| Tightening torque, min | 1.4 Nm |
| Tightening torque max | 2 Nm |
| Screw thread | M4 |
| Tightening torque, min | 1.4 Nm |
| Tightening torque max | 2 Nm |
Connection data (JIS standard)
| Connection method | Ring cable lug |
|---|---|
| Connection in acc. with standard | JIS 8207-7-1 |
| Single-wire/terminal point, solid diameter min. | 0.5 mm |
| Single-wire/terminal point, solid diameter max. | 2 mm |
| Conductor cross section flexible min. | 0.5 mm² |
| Conductor cross section flexible max. | 3.5 mm² |
| Cable lug connection according to standard | JIS 8207-7-1 |
| Min. cross section for cable lug connection | 0.5 mm² |
| Max. cross section for cable lug connection | 3.5 mm² |
| Hole diameter, min. | 4.3 mm |
| Cable lug width, max. | 8.8 mm |
| Bolt diameter | 4 mm |
| Screw thread | M4 |
| Tightening torque, min | 1.4 Nm |
| Tightening torque max | 2 Nm |
| Nominal current IN | 30 A |
| Maximum load current | 30 A |
| Nominal voltage UN | 600 V |
Standards and Regulations
| Connection in acc. with standard | IEC 60947-7-1 |
|---|---|
| Flammability rating according to UL 94 | V0 |
