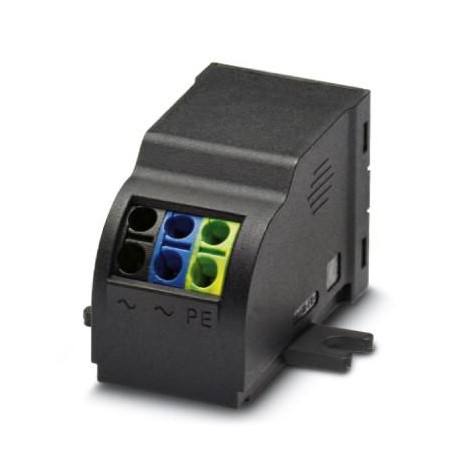

Key Commercial Data
| Orderkey | 2803409 |
|---|---|
| Packing unit | 10 pc |
| Catalog page | Page 73 (C-4-2017) |
| GTIN | 4046356350976 |
| Weight per Piece (excluding packing) | 27.350 g |
| Custom tariff number | 85363010 |
| Country of origin | DE (Germany) |
Ambient conditions
| Degree of protection | IP20 |
|---|---|
| Ambient temperature (operation) | -30 °C … 75 °C |
| Ambient temperature (storage/transport) | -30 °C … 75 °C |
| Altitude | ≤ 2000 m (amsl (above mean sea level)) |
| Permissible humidity (operation) | 5 % … 95 % |
General
| EN type | T3 |
|---|---|
| IEC power supply system | TN-S |
| TT | |
| IT with N conductor | |
| Number of ports | One |
| Mode of protection | L-N |
| L-PE | |
| N-PE | |
| Mounting type | Screw mounting |
| Color | jet black RAL 9005 |
| Housing material | PA 6.6 |
| Degree of pollution | 2 |
| Distance between live and grounded parts | 3 mm |
| Flammability rating according to UL 94 | V-0 |
| Type | Installation module |
| Number of positions | 2 |
| Surge protection fault message | Acoustic |
Protective circuit
| Nominal voltage UN | 230/400 V AC (TN-S) |
|---|---|
| 230/400 V AC (TT – only in use with RCD) | |
| Nominal frequency fN | 50 Hz (60 Hz) |
| Maximum continuous operating voltage UC(L-N) | 275 V AC |
| Maximum continuous operating voltage UC(L-PE) | 440 V AC |
| Maximum continuous operating voltage UC(N-PE) | 440 V AC |
| Rated load current IL | 16 A (30 °C) |
| Residual current IPE | ≤ 3 µA |
| Nominal discharge current In(8/20) µs | 3 kA |
| Standby power consumption PC | ≤ 400 mVA |
| Reference test voltage UREF | 255 V AC |
| Max. discharge current Imax(8/20) µs | 8 kA |
| Combination wave UOC | 6 kV |
| Voltage protection level Up(L-N) | ≤ 1.3 kV |
| Voltage protection level Up(L-PE) | ≤ 1.5 kV |
| Voltage protection level Up(N-PE) | ≤ 1.5 kV |
| TOV behavior at UT(L-N) | 335 V AC (5 s / withstand mode) |
| 440 V AC (120 min / safe failure mode) | |
| TOV behavior at UT(L-PE) | 440 V AC (5 s / withstand mode) |
| 440 V AC (120 min / withstand mode) | |
| 1455 V AC (200 ms / safe failure mode) | |
| TOV behavior at UT(N-PE) | 1200 V AC (200 ms / safe failure mode) |
| Response time tA(L-N) | ≤ 25 ns |
| Response time tA(L-PE) | ≤ 100 ns |
| Max. required back-up fuse | 16 A (MCB B) |
| Short-circuit current rating ISCCR | 1 kA AC |
| Max. backup fuse with branch wiring | 16 A (MCB B) |
| Maximum backup fuse for through wiring | 16 A (MCB B) |
Connection data
| Connection method | Spring-cage connection |
|---|---|
| Conductor cross section flexible | 0.2 mm² … 2.5 mm² |
| Conductor cross section solid | 0.2 mm² … 2.5 mm² |
| Conductor cross section AWG | 24 … 14 |
| Stripping length | 10 mm |
