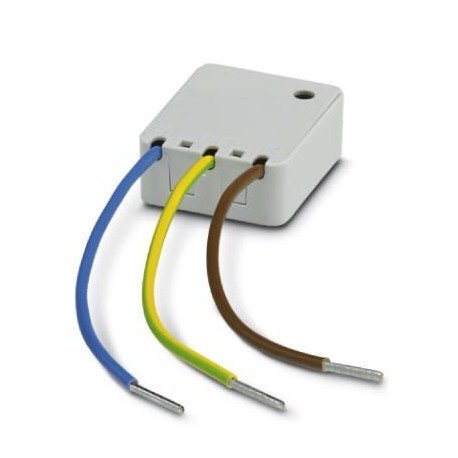

BLT-T3-230-A 1038841 PHOENIX CONTACT Type 3 surge protection for universal installation in installation boxe..
BLT-T3-230-A 1038841 PHOENIX CONTACT Type 3 surge protection for universal installation in installation boxe..
Type 3 surge protection for universal installation in installation boxes, sill-type trunking, underfloor installations. Circuit with thermal monitoring, acoustic fault warning.
Liên hệ:
Key Commercial Data
| Orderkey | 1038841 |
|---|---|
| Packing unit | 1 |
| Catalog page | Page 86 (C-4-2019) |
| GTIN | 4055626593203 |
| Custom tariff number | 85363030 |
Ambient conditions
| Degree of protection | IP20 (Installed) |
|---|---|
| Ambient temperature (operation) | -20 °C … 70 °C |
| Ambient temperature (storage/transport) | -20 °C … 70 °C |
| Altitude | ≤ 2000 m (amsl (above mean sea level)) |
| Permissible humidity (operation) | 5 % … 95 % |
General
| EN type | T3 |
|---|---|
| IEC power supply system | TN-S |
| TT | |
| Number of ports | One |
| Mode of protection | L-N |
| L-PE | |
| N-PE | |
| Mounting type | in device sockets and conductor routing systems made of insulating material |
| Color | light grey RAL 7035 |
| Housing material | PA 6.6-FR |
| Degree of pollution | 2 |
| Flammability rating according to UL 94 | V-0 |
| Type | Socket mounting module |
| Number of positions | 2 |
| Surge protection fault message | Acoustic |
Protective circuit
| Nominal voltage UN | 230 V AC (TN-S) |
|---|---|
| 230 V AC (TT – only in use with RCD) | |
| Nominal frequency fN | 50 Hz (60 Hz) |
| Maximum continuous voltage UC | 255 V AC |
| Residual current IPE | ≤ 5 µA |
| Reference test voltage UREF | 255 V AC |
| Max. discharge current Imax(8/20) µs | 4 kA |
| Combination wave UOC | 6 kV |
| Voltage protection level Up | ≤ 1.5 kV |
| TOV behavior at UT(L-N) | 440 V AC (5 s / withstand mode) |
| 440 V AC (120 min / withstand mode) | |
| TOV behavior at UT(L-PE) | 440 V AC (5 s / withstand mode) |
| 440 V AC (120 min / withstand mode) | |
| 1455 V AC (200 ms / safe failure mode) | |
| TOV behavior at UT(N-PE) | 1200 V AC (200 ms / safe failure mode) |
| Response time tA(L-N) | ≤ 25 ns |
| Response time tA(L-PE) | ≤ 100 ns |
| Response time tA(N-PE) | ≤ 100 ns |
| Max. required back-up fuse | 16 A (MCB B) |
| Short-circuit current rating ISCCR | 1.5 kA AC |
Environmental Product Compliance
| REACh SVHC | |
|---|---|
| Lead 7439-92-1 | |
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer’s declaration” |
Classifications
[email protected]
| [email protected] 6.0 | 27130800 |
|---|---|
| [email protected] 7.0 | 27130806 |
| [email protected] 8.0 | 27130806 |
| [email protected] 9.0 | 27130806 |
