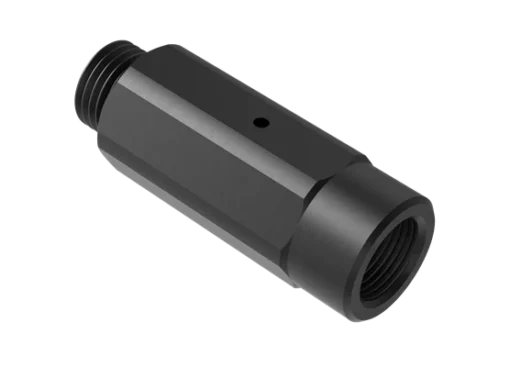

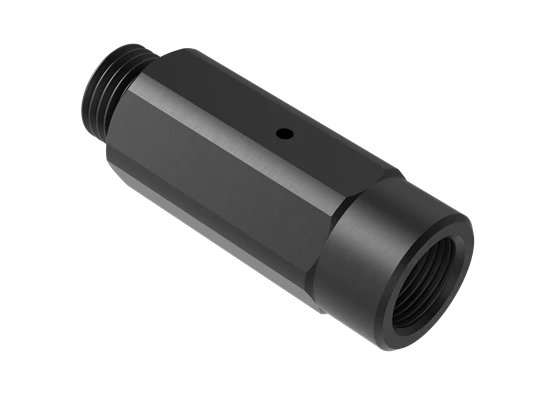

Blow-off Check valve 1/8" NPSF female

Blow-off Check valve 1/8″ NPSF female

Blow-off Check valve 1/8″ NPSF female

Our suction cup valves are a group of products that serve to save energy in various applications at the suction cup.

sản phẩm chính hãng, MỚI 100% CHƯA SỬ DỤNG
SẢN PHẨM LUÔN ĐƯỢC KIỂM TRA TRƯỚC KHI XUẤT KHO
BẢO HÀNH 12 THÁNG ĐỐI VỚI LỖI CỦA NHÀ SẢN XUẤT / HOẶC THEO CHÍNH SÁCH CỦA SẢN PHẨM DO TRƯỜNG THỊNH PHÂN PHỐI
HỖ TRỢ KỸ THUẬT 24/7
MIỄN PHÍ GIAO HÀNG ĐỐI VỚI CÁC ĐƠN HÀNG TỪ 8,000,000VNĐ

Liên hệ:

SKU: 01.15.314 Danh mục: PIAB Thẻ: 01.15.314, 01.17.337, Blow-off Check valve 1/8" NPSF female, Item no: 01.15.314

Mô tả

Our suction cup valves are a group of products that serve to save energy in various applications at the suction cup.

Prevents vacuum from being pulled through the blow-off lines, which means faster response time and completely independent vacuum units.

Reliable quick-release function even in larger systems with several units, due to the very low feed pressure required to break away for blow-off.

Suitable in applications where cleaning of the suction cup filters or cooling of the object to be picked is important.

General

Material

STEEL, HNBR, PA, POM, SS, AL, NBR

Temperature

14 – 176 °F

Weight, min.

0.33 oz

Feed pressure (minimum to break away for blow-off)

14.5 – 101.5 psi

Feed pressure, optimum

43.5 – 87 psi

Flow rate (@ 44-87 psi)

2.75 – 5.93 scfm
