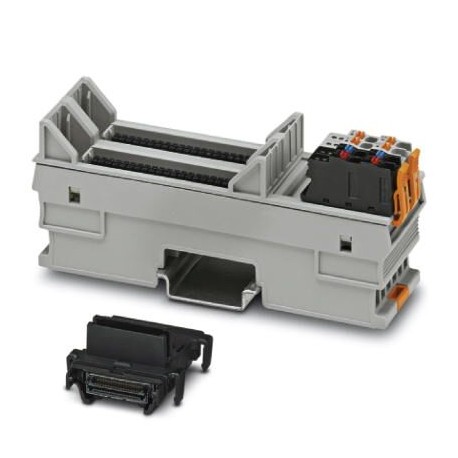

AXL P FBPS BASE 2316393 PHOENIX CONTACT Axioline P base for PROFIBUS PA power supply plugs. Provides redunda..
AXL P FBPS BASE 2316393 PHOENIX CONTACT Axioline P base for PROFIBUS PA power supply plugs. Provides redunda..
Axioline P base for PROFIBUS PA power supply plugs. Provides redundancy when two plugs are installed. Redundancy is maintained across multiple bases via backplane connectors.
Liên hệ:
Key Commercial Data
| Orderkey | 2316393 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 99 (C-6-2019) |
| GTIN | 4055626368375 |
| Weight per Piece (excluding packing) | 200.000 g |
| Custom tariff number | 85366990 |
| Country of origin | US (United States) |
Note
| Utilization restriction | EMC: class A product, see manufacturer’s declaration in the download area |
|---|
Ambient conditions
| Ambient temperature (operation) | -40 °C … 65 °C (Mounting position: wall mounting on horizontal DIN rail) |
|---|---|
| -40 °C … 50 °C (Mounting position: wall mounting on vertical DIN rail with up to four PROFIBUS PA segments (power supplies in redundant configuration)) | |
| Ambient temperature (storage/transport) | -40 °C … 85 °C |
| Permissible humidity (operation) | 5 % … 95 % (non-condensing) |
| Permissible humidity (storage/transport) | 5 % … 95 % |
| Altitude | 2000 m (above sea level) |
| Degree of protection | IP20 |
Power supply
| Supply voltage range | 18.5 V DC … 30.5 V DC |
|---|---|
| Max. current consumption | 950 mA (18.5 V DC, 500 mA load) |
| Typical current consumption | 750 mA () |
| Conductor cross section flexible max. | 1.50 mm² |
| Conductor cross section flexible min. | 0.20 mm² |
| Conductor cross section solid max. | 1.50 mm² |
| Conductor cross section solid min. | 0.20 mm² |
| Conductor cross section AWG max. | 16 |
| Conductor cross section AWG min. | 24 |
Serial interface
| Interface 1 | Axioline P local bus |
|---|---|
| Connection method | Bus base module |
| Interface 2 | PROFIBUS PA |
| Interface | PROFIBUS |
| Connection method | Push-in / plug connection |
| Number of bus devices | 256 |
| Termination resistor | 100 Ω |
Standards and Regulations
| Shock | 5g |
|---|---|
| Vibration (operation) | 2g |
| ATEX | II 3 G Ex ec IIC T4 Gc IBExU 18ATEXB018X |
| IECEx | Ex ec IIC T4 Gc IECEx IBE 18.0023X |
| UL, USA/Canada | Class I, Div. 2, Groups A, B, C, D T4 Class I, Zone 2, IIC T4 |
Classifications
[email protected]
| [email protected] 10.0.1 | 27242692 |
|---|---|
| [email protected] 8.0 | 27242692 |
| [email protected] 9.0 | 27242692 |
