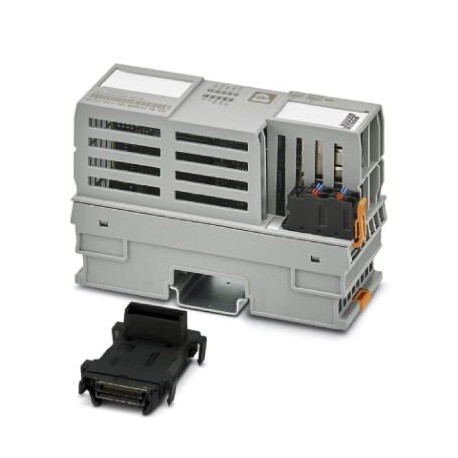

Axioline P, PROFINET, RJ45 socket, auto negotiation and auto crossing, transmission speed in the local bus: 100 Mbps
Liên hệ:
Key Commercial Data
| Orderkey | 2316390 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 98 (C-6-2019) |
| GTIN | 4055626368382 |
| Weight per Piece (excluding packing) | 200.000 g |
| Custom tariff number | 85176200 |
| Country of origin | US (United States) |
Note
| Utilization restriction | EMC: class A product, see manufacturer’s declaration in the download area |
|---|
Dimensions
| Dimensional drawing |
 |
|---|---|
| Width | 45 mm |
| Height | 126.93 mm |
| Depth | 75 mm |
| Note on dimensions | The depth is valid when a TH 35-7,5 DIN rail is used (according to EN 60715). |
Ambient conditions
| Ambient temperature (operation) | -40 °C … 70 °C (Mounting position: wall mounting on horizontal DIN rail) |
|---|---|
| Ambient temperature (storage/transport) | -40 °C … 85 °C |
| Permissible humidity (operation) | 5 % … 95 % (non-condensing) |
| Permissible humidity (storage/transport) | 5 % … 95 % (non-condensing) |
| Air pressure (operation) | up to 2000 m above sea level |
| Air pressure (storage/transport) | up to 2000 m above sea level |
| Degree of protection | IP20 |
Connection data
| Designation | Power supply |
|---|---|
| Connection method | Push-in connection |
| Conductor cross section solid min. | 0.2 mm² |
| Conductor cross section solid max. | 1.5 mm² |
| Conductor cross section flexible min. | 0.2 mm² |
| Conductor cross section flexible max. | 1.5 mm² |
| Conductor cross section AWG min. | 24 |
| Conductor cross section AWG max. | 16 |
| Stripping length | 8 mm |
General
| Mounting type | DIN rail mounting |
|---|---|
| Color | gray |
| Net weight | 312.6 g |
| Note on weight specifications | with bus base module |
| Degree of pollution | 2 |
| Mounting position | any |
| Maximum altitude | 2000 m |
Interfaces
| Designation | PROFINET |
|---|---|
| No. of channels | 2 |
| Connection method | RJ45 socket, auto negotiation and auto crossing |
| Transmission speed | 100 Mbps (Full duplex) |
| Transmission physics | Ethernet in RJ45 twisted pair |
| Designation | Axioline P local bus |
| Connection method | Bus base module |
| Transmission speed | 100 Mbps |
System limits of the bus coupler
| Number of supported devices | max. 8 (per redundant PROFIBUS PA segments) |
|---|
Axioline potentials
| Supply voltage | 24 V DC () |
|---|---|
| Supply voltage range | 19.2 V DC … 30 V DC |
| Current consumption | 210 mA (24 V DC) |
| 250 mA () | |
| Designation | Supply of the Axioline P local bus UBus |
| Supply voltage | 5 V DC (via bus base module) |
| Power supply unit | 2 A |
| Current consumption | 3 A (via bus base module) |
| Protective circuit | Surge protection of the supply voltage electronic |
| Polarity reversal protection of the supply voltage electronic |
Standards and Regulations
| Mechanical tests | Vibration resistance in acc. with EN 60068-2-6/IEC 60068-2-6 2g |
|---|---|
| Shock in acc. with EN 60068-2-27/IEC 60068-2-27 5g | |
| ATEX | II 3 G Ex ec IIC T4 Gc IBExU 18ATEXB018X |
| IECEx | Ex ec IIC T4 Gc IECEx IBE 18.0023X |
| UL, USA/Canada | Class I, Div. 2, Groups A, B, C, D T4 Class I, Zone 2, IIC T4 |
| Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
| Overvoltage category | II |
Classifications
