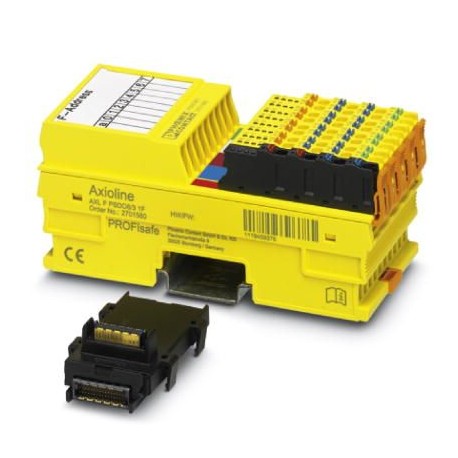

Key Commercial Data
| Orderkey | 2701560 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 303 (C-6-2017) |
| GTIN | 4046356769938 |
| Weight per Piece (excluding packing) | 222.000 g |
| Custom tariff number | 85389091 |
| Country of origin | DE (Germany) |
Dimensions
| Dimensional drawing | |
|---|---|
| Width | 53.6 mm |
| Height | 126.1 mm |
| Depth | 54 mm |
| Note on dimensions | Housing dimensions |
Ambient conditions
| Ambient temperature (operation) | -35 °C … 60 °C (Mounting position: any) |
|---|---|
| Ambient temperature (storage/transport) | -40 °C … 85 °C |
| Permissible humidity (operation) | 10 % … 75 % (on average, 85% infrequently, non-condensing) |
| Permissible humidity (storage/transport) | 10 % … 75 % (non-condensing) |
| Air pressure (operation) | 70 kPa … 108 kPa (up to 3000 m above sea level) |
| Air pressure (storage/transport) | 66 kPa … 108 kPa (up to 3500 m above sea level) |
| Degree of protection | IP20 |
Digital outputs
| Output name | Digital outputs |
|---|---|
| Connection method | Direct plug-in technology |
| Connection technology | 2, 3-wire |
| Number of outputs | 4 (with two-channel assignment) |
| 8 | |
| Type of protection | Overload protection, freewheeling circuit for inductive loads, Discharge circuit for accelerated discharge of capacitive loads |
| Output voltage | 24 V DC |
| Output current | max. 2 A (per channel) |
| max. 4 A (per group) | |
| max. 8 A (Total current of all outputs; Please observe the notes in the user manual.) | |
| as of | |
| from 45 °C according to CULUS | |
| Maximum output current per channel | 2 A |
| Maximum output current per module / terminal block | 8 A |
General
| Mounting type | DIN rail |
|---|---|
| Net weight | 222 g |
| Note on weight specifications | with connectors and bus base module |
