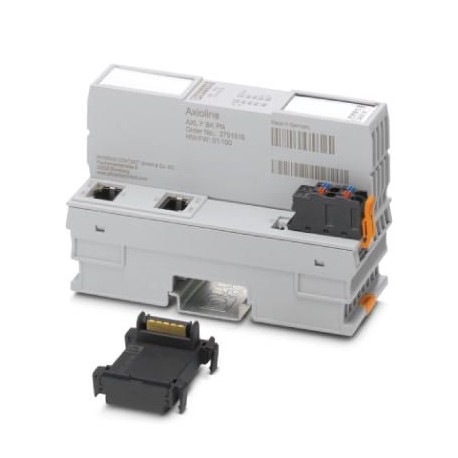

Key Commercial Data
| Orderkey | 2701222 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4046356729789 |
| Weight per Piece (excluding packing) | 222.000 g |
| Custom tariff number | 85389091 |
| Country of origin | DE (Germany) |
Dimensions
| Dimensional drawing | |
|---|---|
| Width | 45 mm |
| Height | 126.1 mm |
| Depth | 74 mm |
| Note on dimensions | The depth is valid when a TH 35-7,5 DIN rail is used (according to EN 60715). |
Ambient conditions
| Ambient temperature (operation) | -25 °C … 60 °C (Mounting position: wall mounting on horizontal DIN rail) |
|---|---|
| -25 °C … 55 °C (Mounting position: any) | |
| -40 °C … 70 °C (Extended, see section “Tested successfully: use under extreme ambient conditions” in the data sheet.) | |
| Permissible humidity (operation) | 5 % … 95 % (non-condensing) |
| Permissible humidity (storage/transport) | 5 % … 95 % (non-condensing) |
| Air pressure (operation) | 70 kPa … 106 kPa (up to 3000 m above sea level) |
| Air pressure (storage/transport) | 70 kPa … 106 kPa (up to 3000 m above sea level) |
| Degree of protection | IP20 |
General
| Mounting type | DIN rail mounting |
|---|---|
| Net weight | 222 g |
| Note on weight specifications | with connector and bus base module |
| Mounting type | DIN rail mounting |
Interfaces
| Designation | PROFINET |
|---|---|
| No. of channels | 2 |
| Connection method | RJ45 socket, auto negotiation and auto crossing |
| Transmission speed | 100 Mbps (Full duplex) |
| Transmission physics | Ethernet in RJ45 twisted pair |
| Designation | Axioline F local bus |
| Connection method | Connection for bus base module |
| Transmission speed | 100 Mbps |
| Designation | Service |
| Connection method | Micro USB type B |
System limits of the bus coupler
| Number of supported devices | max. 63 (per station) |
|---|---|
| Number of local bus devices that can be connected | max. 63 |
