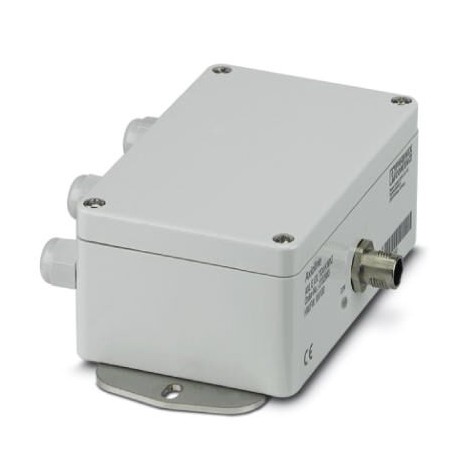

Axioline E IO-Link/analog converter with 4 analog TC inputs (type K), 2-conductor connection technology, 1 IO-Link A port, 24 V DC, degree of protection IP65
Liên hệ:
Key Commercial Data
| Orderkey | 2702983 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 181 (C-6-2019) |
| GTIN | 4055626447261 |
| Weight per Piece (excluding packing) | 380.000 g |
| Custom tariff number | 85176200 |
| Country of origin | DE (Germany) |
Note
| Utilization restriction | EMC: class A product, see manufacturer’s declaration in the download area |
|---|
Dimensions
| Dimensional drawing |
 |
|---|---|
| Width | 150 mm |
| Height | 54 mm |
| Depth | 118 mm |
| Note on dimensions | When installing, note the length of the M12 connector for the IO-Link cable and the bending radii of the TC cables. |
Ambient conditions
| Ambient temperature (operation) | -25 °C … 60 °C |
|---|---|
| Ambient temperature (storage/transport) | -25 °C … 85 °C |
| Permissible humidity (operation) | 5 % … 95 % |
| Permissible humidity (storage/transport) | 5 % … 95 % |
| Air pressure (operation) | 70 kPa … 106 kPa (up to 3000 m above sea level) |
| Air pressure (storage/transport) | 70 kPa … 106 kPa (up to 3000 m above sea level) |
| Degree of protection | IP65 |
Electrical isolation
| Test section | IO-Link bus logic 500 V AC 50 Hz 1 min. |
|---|---|
| Thermocouple I/O devices 500 V AC 50 Hz 1 min. | |
| Functional earth ground 500 V AC 50 Hz 1 min. |
Standards and Regulations
| Mechanical tests | Vibration resistance in acc. with EN 60068-2-6/IEC 60068-2-6 5g |
|---|---|
| Shock in acc. with EN 60068-2-27/IEC 60068-2-27 50g, 11 ms period, half-sine shock pulse | |
| Continuous shock according to EN 60068-2-27/IEC 60068-2-27 10g | |
| Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
Classifications
[email protected]
| [email protected] 6.0 | 27242600 |
|---|---|
| [email protected] 7.0 | 27242601 |
| [email protected] 8.0 | 27242601 |
| [email protected] 9.0 | 27242601 |
