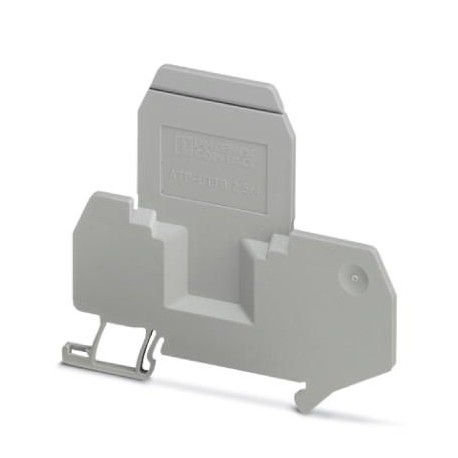

ATP-UTTB 2,5/4 3047316 PHOENIX CONTACT Partition plate

ATP-UTTB 2,5/4 3047316 PHOENIX CONTACT Partition plate

ATP-UTTB 2,5/4 3047316 PHOENIX CONTACT Partition plate

Partition plate

sản phẩm chính hãng, MỚI 100% CHƯA SỬ DỤNG
SẢN PHẨM LUÔN ĐƯỢC KIỂM TRA TRƯỚC KHI XUẤT KHO
BẢO HÀNH 12 THÁNG ĐỐI VỚI LỖI CỦA NHÀ SẢN XUẤT / HOẶC THEO CHÍNH SÁCH CỦA SẢN PHẨM DO TRƯỜNG THỊNH PHÂN PHỐI
HỖ TRỢ KỸ THUẬT 24/7
MIỄN PHÍ GIAO HÀNG ĐỐI VỚI CÁC ĐƠN HÀNG TỪ 8,000,000VNĐ

Liên hệ:

SKU: 3047316 Danh mục: Modular TBs Thẻ: 3047316, 5/4, ATP-UTTB 2, PHOENIX_CONTACT

Mô tả

Key Commercial Data

Orderkey	3047316
Packing unit	50 pc
Minimum order quantity	50 pc
Catalog page	Page 46 (C-3-2013)
GTIN	4017918997281
Weight per Piece (excluding packing)	6.650 g
Custom tariff number	85472000
Country of origin	DE (Germany)

General

Color	gray
Material	PA
Flammability rating according to UL 94	V0

Dimensions

Width	2.2 mm
Length	74.3 mm
Height	70 mm

General

Relative insulation material temperature index (Elec., UL 746 B)	130 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21))	125 °C
Static insulating material application in cold	-60 °C
Behavior in fire for rail vehicles (DIN 5510-2)	Test passed
Flame test method (DIN EN 60695-11-10)	V0
Oxygen index (DIN EN ISO 4589-2)	>32 %
NF F16-101, NF F10-102 Class I	2
NF F16-101, NF F10-102 Class F	2
Surface flammability NFPA 130 (ASTM E 162)	passed
Specific optical density of smoke NFPA 130 (ASTM E 662)	passed
Smoke gas toxicity NFPA 130 (SMP 800C)	passed
Calorimetric heat release NFPA 130 (ASTM E 1354)	27,5 MJ/kg
Fire protection for rail vehicles (DIN EN 45545-2) R22	HL 1 – HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23	HL 1 – HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24	HL 1 – HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26	HL 1 – HL 3

Standards and Regulations

Flammability rating according to UL 94	V0
Fire protection for rail vehicles (DIN EN 45545-2) R22	HL 1 – HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23	HL 1 – HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24	HL 1 – HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26	HL 1 – HL 3

Environmental Product Compliance

China RoHS	Environmentally friendly use period: unlimited = EFUP-e
	No hazardous substances above threshold values
