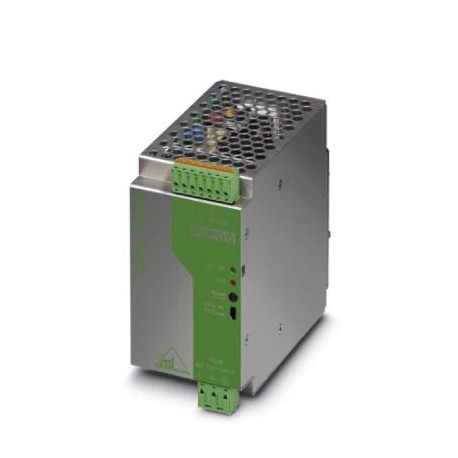

Key Commercial Data
| Orderkey | 2736699 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 232 (C-6-2017) |
| GTIN | 4017918959685 |
| Weight per Piece (excluding packing) | 900.000 g |
| Custom tariff number | 85044030 |
| Country of origin | TH (Thailand) |
Dimensions
| Width | 70 mm |
|---|---|
| Height | 145 mm |
| Depth | 125 mm |
| Width with alternative assembly | 122 mm |
| Height with alternative assembly | 145 mm |
| Depth with alternative assembly | 73 mm |
Ambient conditions
| Degree of protection | IP20 |
|---|---|
| Ambient temperature (operation) | -25 °C … 70 °C (> 60 °C Derating: 2.5 %/K) |
| Ambient temperature (storage/transport) | -40 °C … 85 °C |
| Max. permissible relative humidity (operation) | 95 % (at 25 °C, non-condensing) |
Input data
| Nominal input voltage range | 100 V AC … 240 V AC |
|---|---|
| AC frequency range | 45 Hz … 65 Hz |
| Frequency range DC | 0 Hz |
| Current consumption | approx. 1.8 A (120 V AC) |
| 1 A (230 V AC) | |
| Nominal power consumption | 144 W |
| Inrush surge current | < 15 A (typical) |
| Mains buffering | > 60 ms (120 V AC) |
| > 100 ms (230 V AC) | |
| Input fuse | 5 A (slow-blow, internal) |
| Choice of suitable circuit breakers | 6 A … 16 A (Characteristics B, C, D, K) |
Output data
| Nominal output voltage | 30.1 V DC ±1.5 % |
|---|---|
| Nominal output current (IN) | 4.8 A |
| Connection in parallel | No |
| Connection in series | yes |
| Residual ripple | < 30 mVPP |
| Output power | 144 W |
| Typical response time | < 0.5 s |
| Peak switching voltages nominal load | < 50 mVPP |
| Maximum power dissipation in no-load condition | 4 W |
| Power loss nominal load max. | 16 W |
General
| Net weight | 0.9 kg |
|---|---|
| Operating voltage display | LED |
| Efficiency | > 89 % (for 230 V AC and nominal values) |
| Insulation voltage input/output | 4 kV AC (type test) |
| 2 kV AC (routine test) | |
| Degree of protection | IP20 |
| MTBF (IEC 61709, SN 29500) | > 500000 h |
| Mounting position | horizontal DIN rail NS 35, EN 60715 |
| Assembly instructions | alignable: horizontally 0 mm, vertically 50 mm |
