AGK PT 8X6/M10 GNYE 1083236 PHOENIX CONTACT Pick-off terminal block, nom. voltage: 1000 V, nominal current: ..
AGK PT 8X6/M10 GNYE 1083236 PHOENIX CONTACT Pick-off terminal block, nom. voltage: 1000 V, nominal current: ..

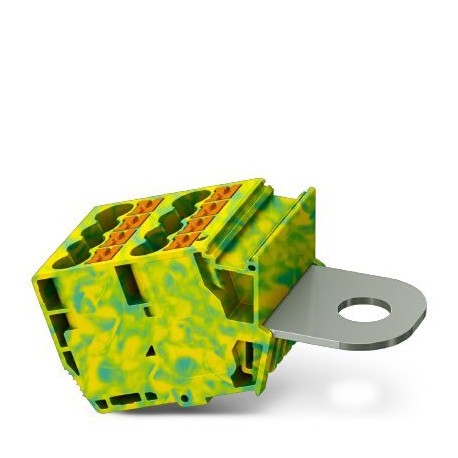

Pick-off terminal block, nom. voltage: 1000 V, nominal current: 41 A, connection method: Push-in connection, Bolt connection, number of connections: 9, cross section: 0.5 mm² – 10 mm², AWG: 20 – 8, width: 31 mm, height: 32.3 mm, color: green/yellow, mounting type: on base element
Liên hệ:
Key Commercial Data
| Orderkey | 1083236 |
|---|---|
| Packing unit | 1 |
| Catalog page | Page 119 (C-1-2019) |
| GTIN | 4055626817828 |
| Custom tariff number | 85369010 |
General
| Number of levels | 1 |
|---|---|
| Number of connections | 9 |
| Nominal cross section | 6 mm² |
| Color | green/yellow |
| Insulating material | PA |
| Flammability rating according to UL 94 | V0 |
| Rated surge voltage | 8 kV |
| Overvoltage category | III |
| Insulating material group | I |
| Maximum power dissipation for nominal condition | 1.31 W |
| Maximum load current | 57 A |
| Maximum total current | 106 A (Bolt connection) |
| Nominal current IN | 41 A |
| Nominal voltage UN | 1000 V |
| Nominal current IN | 41 A |
| Open side panel | No |
Connection data
| Connection | 1 level |
|---|---|
| Connection method | Push-in connection |
| Stripping length | 10 mm … 12 mm |
| Connection in acc. with standard | IEC 60947-7-1 |
| Conductor cross section solid min. | 0.5 mm² |
| Conductor cross section solid max. | 10 mm² |
| Conductor cross section AWG min. | 20 |
| Conductor cross section AWG max. | 8 |
| Conductor cross section flexible min. | 0.5 mm² |
| Conductor cross section flexible max. | 6 mm² |
| Min. AWG conductor cross section, flexible | 20 |
| Max. AWG conductor cross section, flexible | 10 |
| Conductor cross section flexible, with ferrule without plastic sleeve min. | 0.5 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve max. | 6 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve min. | 0.5 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve max. | 6 mm² |
| Internal cylindrical gage | A5 |
| Connection | 1 level |
| Note | Connection bolts |
| Connection method | Bolt connection |
| Screw thread | M10 |
| Connection in acc. with standard | IEC 60947-7-1 |
| Tightening torque, min | 10 Nm |
| Tightening torque max | 20 Nm |
| Conductor cross section flexible min. | 6 mm² |
| Conductor cross section flexible max. | 120 mm² |
| Min. AWG conductor cross section, flexible | 10 |
| Max. AWG conductor cross section, flexible | 250 kcmil |
| Hole diameter, min. | 10.4 mm |
| Cable lug width, max. | 32 mm |
| Bolt diameter | 10 mm |
| Screw thread | M10 |
Standards and Regulations
| Connection in acc. with standard | IEC 60947-7-1 |
|---|---|
| IEC 60947-7-1 | |
| Flammability rating according to UL 94 | V0 |
Classifications
[email protected]
| [email protected] 4.0 | 27141131 |
|---|---|
| [email protected] 4.1 | 27141131 |
| [email protected] 5.0 | 27141131 |
| [email protected] 5.1 | 27141120 |
| [email protected] 6.0 | 27141100 |
| [email protected] 7.0 | 27141151 |
| [email protected] 8.0 | 27141120 |
| [email protected] 9.0 | 27141120 |
ETIM
| ETIM 2.0 | EC000897 |
|---|---|
| ETIM 3.0 | EC000897 |
| ETIM 4.0 | EC000897 |
| ETIM 5.0 | EC000897 |
| ETIM 6.0 | EC000897 |
| ETIM 7.0 | EC000897 |
