81324,203 S00006 2400582 PHOENIX CONTACT Mobile panel with 26.4 cm/10.4" TFT-display (Resistive industrial t..

81324,203 S00006 2400582 PHOENIX CONTACT Mobile panel with 26.4 cm/10.4″ TFT-display (Resistive industrial t..

81324,203 S00006 2400582 PHOENIX CONTACT Mobile panel with 26.4 cm/10.4″ TFT-display (Resistive industrial t..

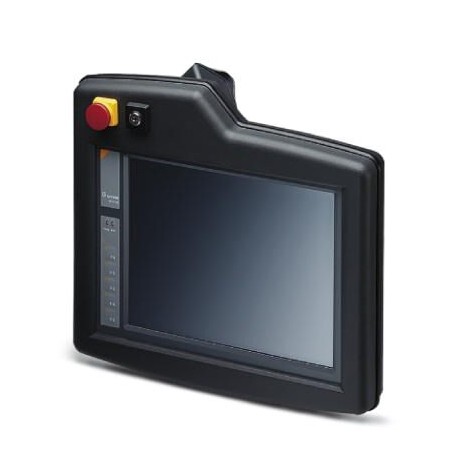

Mobile panel with 26.4 cm/10.4″ TFT-display (Resistive industrial touch screen), 800 x 600 pixel(s) (SVGA), 262144 colors, Xscale

sản phẩm chính hãng, MỚI 100% CHƯA SỬ DỤNG
SẢN PHẨM LUÔN ĐƯỢC KIỂM TRA TRƯỚC KHI XUẤT KHO
BẢO HÀNH 12 THÁNG ĐỐI VỚI LỖI CỦA NHÀ SẢN XUẤT / HOẶC THEO CHÍNH SÁCH CỦA SẢN PHẨM DO TRƯỜNG THỊNH PHÂN PHỐI
HỖ TRỢ KỸ THUẬT 24/7
MIỄN PHÍ GIAO HÀNG ĐỐI VỚI CÁC ĐƠN HÀNG TỪ 8,000,000VNĐ

Liên hệ:

SKU: 2400582 Danh mục: Control Systems (CST) Thẻ: 203 S00006, 2400582, 81324, PHOENIX_CONTACT

Mô tả

Key Commercial Data

Orderkey	2400582
Packing unit	1
GTIN	4055626110813
Custom tariff number	84714100

Dimensions
Computer data
Ambient conditions
Standards and Regulations
Classifications

Display
General
Device supply
Environmental Product Compliance

Dimensions

Outer dimensions: width, height, depth	311 mm x 281 mm x 135 mm

Display

Display	26.4 cm/10.4″ TFT
Screen resolution	800 x 600 Pixel(s) (SVGA)
Touch technology	Resistive industrial touch screen
Brightness	340 cd/m² typical (adjustable)
Backlighting	LED
Display backlight MTBF	50000 h
Colors	262144 colors
Reading angle left	70 °
Reading angle right	70 °
Reading angle top	50 °
Reading angle bottom	60 °

Computer data

Processor	Xscale^®PXA320, 806 MHz
Operating system	Windows^®CE 5.0
User software	TSvisRT
RAM	128 MB SDRAM
	1 MB SRAM
Mass storage	NAND-Flash, 1 GB
Network	1 x Ethernet (10/100 Mbps), RJ45
Interfaces	1x USB Host 1.1
Bus system	without
Realtime clock	Yes
Service life of battery	5 years (typical)

General

Operating buttons	5x System keys (Software keyboard, change task Alt+Tab, right mouse button, brightness, user-specific function)
Optional operating keys	3-stage enable switch (2-channel), integrated in the handle
Weight	3200 g

Ambient conditions

Degree of protection	IP65
Ambient temperature (operation)	0 °C … 50 °C
Ambient temperature (storage/transport)	-25 °C … 70 °C
Permissible humidity (operation)	20 % … 85 % (non-condensing)
Vibration (operation)	1g, according to EN 60068-2-6
Shock	15g, according to IEC 60068-2-27

Device supply

Typical current consumption	0.8 A
Power supply unit	24 V DC ±20 %

Standards and Regulations

Shock	15g, according to IEC 60068-2-27
Vibration (operation)	1g, according to EN 60068-2-6

Environmental Product Compliance

REACh SVHC
	Lead 7439-92-1
China RoHS	Environmentally Friendly Use Period = 15;
	For details about hazardous substances go to tab “Downloads”, Category “Manufacturer’s declaration”

Classifications

[email protected]

[email protected] 4.0	27330200
[email protected] 4.1	27330200
[email protected] 5.0	27330200
[email protected] 5.1	27330200
[email protected] 6.0	27242300
[email protected] 7.0	27242303
[email protected] 8.0	27242303
[email protected] 9.0	27330202

ETIM

ETIM 5.0	EC001427
ETIM 6.0	EC001427
ETIM 7.0	EC001427

UNSPSC

UNSPSC 13.2	43211712
UNSPSC 18.0	43211712
UNSPSC 19.0	43211712
UNSPSC 20.0	43211712
UNSPSC 21.0	43211712

Dimensions
Computer data
Ambient conditions
Standards and Regulations
Classifications

Display
General
Device supply
Environmental Product Compliance

Dimensions

Outer dimensions: width, height, depth	311 mm x 281 mm x 135 mm

General

Operating buttons	5x System keys (Software keyboard, change task Alt+Tab, right mouse button, brightness, user-specific function)
Optional operating keys	3-stage enable switch (2-channel), integrated in the handle
Weight	3200 g
